  • SELF ASSEMBLY AXIAL LOCKING RINGS FOR BORE TYPE 870
SELF ASSEMBLY AXIAL LOCKING RINGS FOR BORE TYPE 870

Availability Information

 Res Haute steel.
 Yes

Product Description

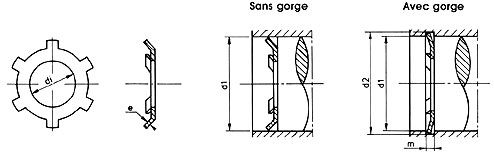

Bore Ring Mounting with Gorge Fh. Load
admi axial
gapless 		Reference
d 1 di e Number of
branches 		d 2 m
min.
Tol. Tol.
8 +/- 0.03 3 5 8.1 +0.05
0 		2 870080
10 4.8   6 10.13   25 870100
12 6.6 0.25 6 12.13 0.55 25 870120
14 +/- 0.05 8.5   6 14.15   30 870140
16 10.2   6 16.15   30 870160
18 12   8 18.17   35 870180
19 12.8 0.4 8 19.17 40 870190
20 13   8 20.17 +0.07
0 		  40 870200
22 15.4 8 22.2   40 870220
25 18   10 25.2 0.85 40 870250
30 22.5 0.5 10 30.23   40 870300
35 26.8   12 35.25   50 870350
50 40   15 50.27   50 870500
