  • SELF LOCKING RING ASSEMBLY AXIAL SHAFT 876 TYPE REINFORCED
SELF LOCKING RING ASSEMBLY AXIAL SHAFT 876 TYPE REINFORCED

Availability Information

 Copper
 Res Haute steel.
 Yes
 		Yes

Product Description

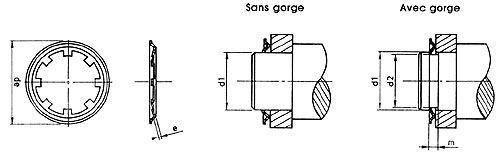

Tree Ring Mounting with Gorge Fh Charge
admi axial
gapless 		Reference
d 1 from e number of branches d 2 m
min.
Tol. Tol.
2 +/- 0.03 6.5 3 1.8 0
-0.05 		15 876020
3 9.1 0.25 4 2.76 0.5 20 876030
4 10.1   5 3.76   20 876040
5 11.5   6 4.76   20 876050
6 12 6 5.86 0
-0.07 		20 876060
8 14.8   8 7.82   20 876080
10 17.2   8 9.8   35 876100
12 18   10 11.8   35 876120
14 +/- 0.05 20.5 0.4 10 13.75   45 876140
15 23   10 14.7   60 876150
16 24.5   7 15.7 0.8 70 876160
17 26   7 16.7   80 876170
18 27   8 17.7   80 876180
20 29 8 19.7   90 876200
22 31   12 21.7   90 876220
25 34 0.5 8 24.7   100 876250
28 37   8 27.7   100 876280
30 40   8 29.7   100 876300
